Thermoplastic Paint(C5 Resin)
- PRODUCT DETAIL

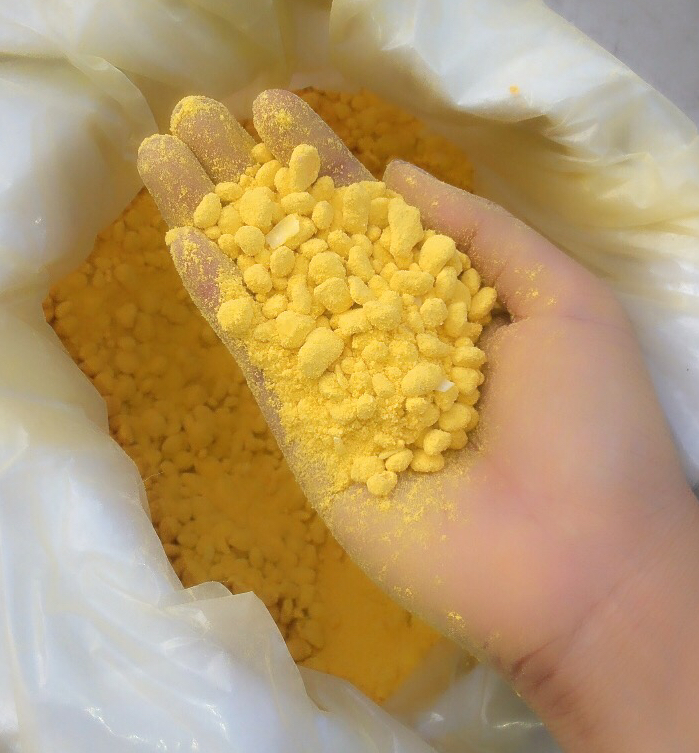

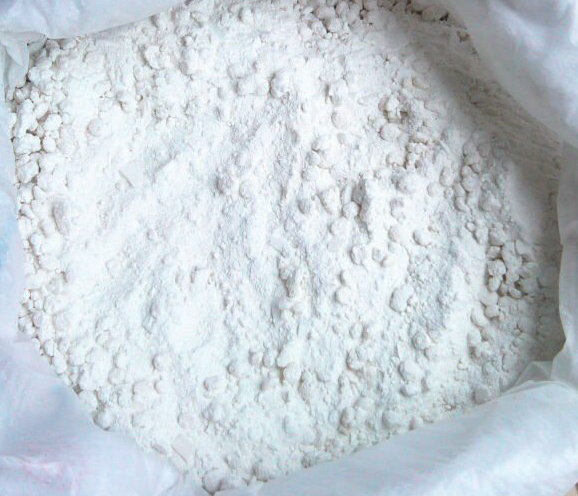

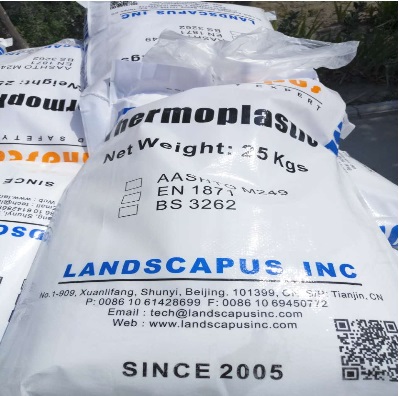

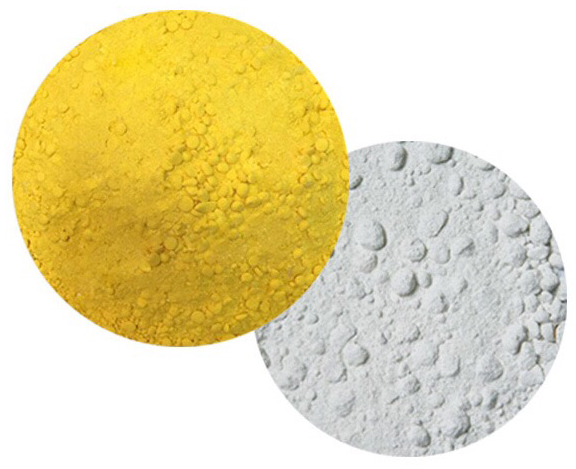

C5 Hydrocarbon Resin-Thermoplastic Road Marking Material
Confirming to AASHTO M249, BS 3262, EN 1871, JIS, AS/NZ 2009, it shall consist of light colored aggregate, pigment and extender, bound together with Hydrocarbon Resin with mineral oil/ ALKYD resin plasticized with plant oil.
AASHTO M249 standard Thermoplastic intermixing Glass Beads shall be in accordance with AASHTO M247 – TYPE I, BS 3262 Thermoplastic intermixing with BS6088 A Glass Beads, EN 1871 Thermoplastic intermixing with EN1424 Glass Beads, JIS intermixing with JIS 3301 Glass Beads, AS/NZ 2009 Thermoplastic intermixing with AS/NZ 2009 Glass Beads.
AKLYD Resin Products and Numbers:
White (RRW-A), Yellow(RRY-A), Red(RRR-A), Green(RRG-A), Black(RRB-A)
Hydrocarbon Resin Products and Numbers:
White (RRW-HR), Yellow(RRY-HR), Red(RRR-HR), Green(RRG-HR), Black(RRB-HR)
|
Constituent |
White |
Yellow |
|
Binder |
18 Min |
18 Min |
|
According To standards |
According To standards |
|
|
Titanium Dioxide |
10 Min |
Organic Yellow |
|
Calcium Carbonate and Inert Filler |
-- |
-- |
|
Yellow Pigment |
|
As Required |
Physical Characteristics:
|
Softening Point °C |
102 ± 9.5 |
102 ± 9.5 |
|
Specific Gravity gm/cm³ |
< 2.15 |
< 2.15 |
|
Flowability % |
18 Max |
21 Max. |
|
Flowability – Extender Heating |
28 Max |
28 Max. |
|
Drying Time |
3 – 5 min @ 32ºC |
3 – 5 min @ 32ºC |
|
Yellow Index |
Below 0.12 |
|
|
Cracking Resistance |
No Cracks |
No Cracks |
|
Impact Resistance (Joules) |
≥ 1.13 |
≥ 1.13 |
|
Color Daylight Reflectance |
75% min. |
45% min. |
