Thermoplastic Paint SCREED GRADE
- PRODUCT DETAIL
Thermoplastic ROAD MARKING PAINTS
EN 1871:2000 / AASHTO M249
TECHNICAL DATA SHEET (TDS)

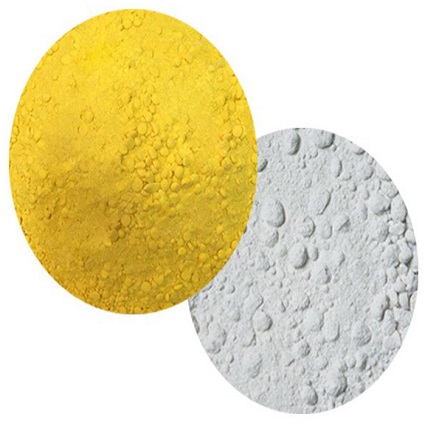

WHITE & YELLOW
General
This specification / requirements is covering the purchase of reflective Thermoplastic paint for road marking for white and yellow color lines and horizontal traffic signs.
Material
The materials shall comply with the EN 1871:2000 standard – Road marking materials physical properties.
Technical Characteristics
|
Characteristic, Relative Paragraph of ΕΝ 1871: |
White |
Yellow |
|
Chromatic coordinates - 4.2.1.1 |
Table 2-White |
Table 2-Yellow |
|
Class of luminance Factor β, 4.2.2.1 -Table 5 |
LF4(β≥0,70) |
LF1(β≥0,40) |
|
Softening Point,4.2.1.2 - Table 6 |
SP3((≥95°C) |
SP3((≥95°C) |
|
Cold Impact,4.2.1.4 - Table 7 |
Cl2 |
Cl2 |
|
UV Aging,4.2.1.5-Luminance Factor-Table 3 |
UV1((Δβ≤0,05) |
UV1((Δβ≤0,05) |
|
UV Aging,4.2.1.5-Chromaticity Coordinates-Table 2 |
Table 2-White |
Table 2-Yellow |
|
Heat Stability,4.2.3.1- Chromaticity Coordinates - Table 2 |
Table 2-White |
Table 2-Yellow |
|
Heat Stability,4.2.3.2 - Softening Point |
ΔSP≤±10°C |
ΔSP≤±10°C |
|
Weather Resistant,4.2.2.4 - Table 9 |
TW2( 2,5 – 5,0) |
TW2( 2,5 – 5,0) |
|
Weather Resistant(after UV aging) 4.2.3.6 - Table 10 |
TWU1(0 to 0.5) |
TWU1(0 to 0.5) |
Additional to the above requirements the offered Thermoplastic paint shall appear the below properties / performance, in use that are designated in EN 1436:2007 +A1 Road Marking Materials – Road Marking Performance for road Users:
|
Characteristic, Relative Paragraph of ΕΝ 1436: |
White |
Yellow |
|
Luminance coefficient under diffuse illumination in dry conditions 4.2.2 Table 1 |
Q3 (Qd≥130) |
Q2(Qd≥100) |
|
Retroreflection under vehicle headlamp illumination, Dry road Markings, 4.3, Table 3 |
R4(RL≥200) |
R3(RL≥150) |
|
Chromatic coordinates, 4.4, Table 6. |
Table 6-White |
Table 6-Yellow class Y1 |
|
Skid Resistance.4.5, Table 7 |
S2(SRT≥45) |
S2(SRT≥45) |
Composition of the Thermoplastic paint
The pigment, the glass bead the filler shall be uniformly spread in the resin and complies to the below Table:-
|
Composition of the Thermoplastic paint % per mass |
|||
|
Component |
White |
Yellow |
Red |
|
Binder |
18.0 min |
18.0 min |
18.0 min |
|
Glass Beads – According the ΕΝ 1424:1997/A1:2003 |
30-40 |
30-40 |
30-40 |
|
Calcium Carbonate and inert Fillers |
42 max |
42 max |
42 max |
|
Titanium Dioxide – According to ASTM D476 Type II(Rutile) |
10.0 min |
------------- |
-------------- |
The granulometry of the Glass Beads that are spread in the Thermoplastic paints shall be as per below Table:
|
Sieves ISO 565:1990 R 40/3 - μm |
Cumulative retained mass (%) |
|
710 |
0-2 |
|
600 |
0-10 |
|
355 |
30-70 |
|
212 |
70-100 |
|
125 |
95-100 |
SCREED GRADE
Consists of a heated hopper mounted on a pram, which feeds hot molten thermoplastic under gravity to a rectangular screed with a gate at the base. The gate opening is set to produce the thickness specified for the hot thermoplastic as it flows onto the pavement. Where immediate reflectivity is required, a manually operated Glass Beads dispenser should be attached to the screed applicator. For letters, numerals and hatched areas, a hand-held mould box is filled manually using a bucket. Glass Beads are then applied by hand. Generally used for Stop Lines, Pedestrian Crossings, Letters, Arrows and Double Yellow Lines.
This process employs a self propelled application pram. The Screed process utilises gravity to screed the hot thermoplastic through a gate opening set to produce a line of pre-selected thickness of material onto the road surface. Glass Beads are gravity applied to the molten line. For more details refer to our Thermoplastic Screed Method Statement.
Recommended Thickness 2 .0 – 4.25 mm.
A low output marking for traffic delineation, advisory markings and mandatory markings in urban areas where space is limited and for small sites where it is impractical to use truck mounted application equipment.
